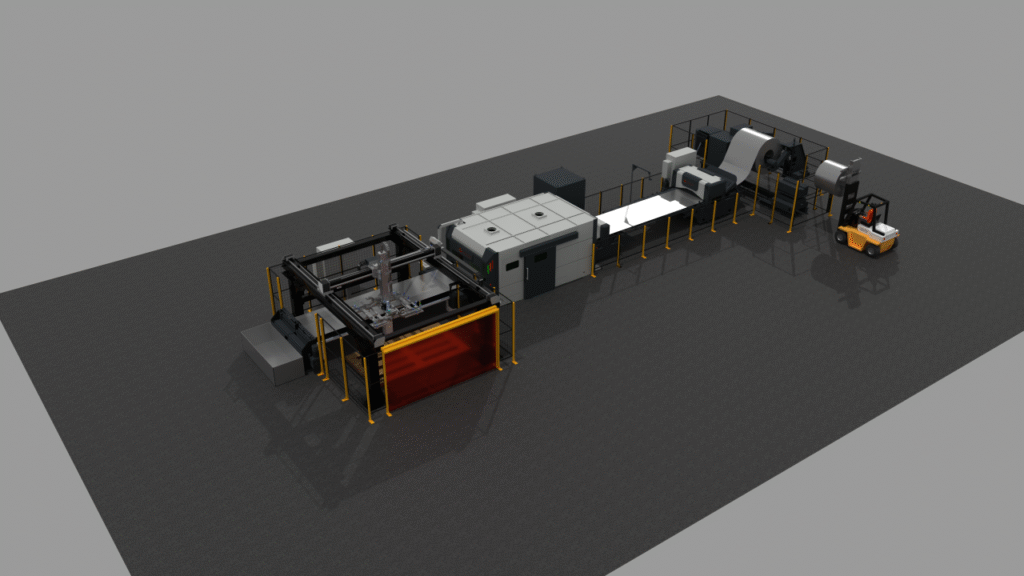

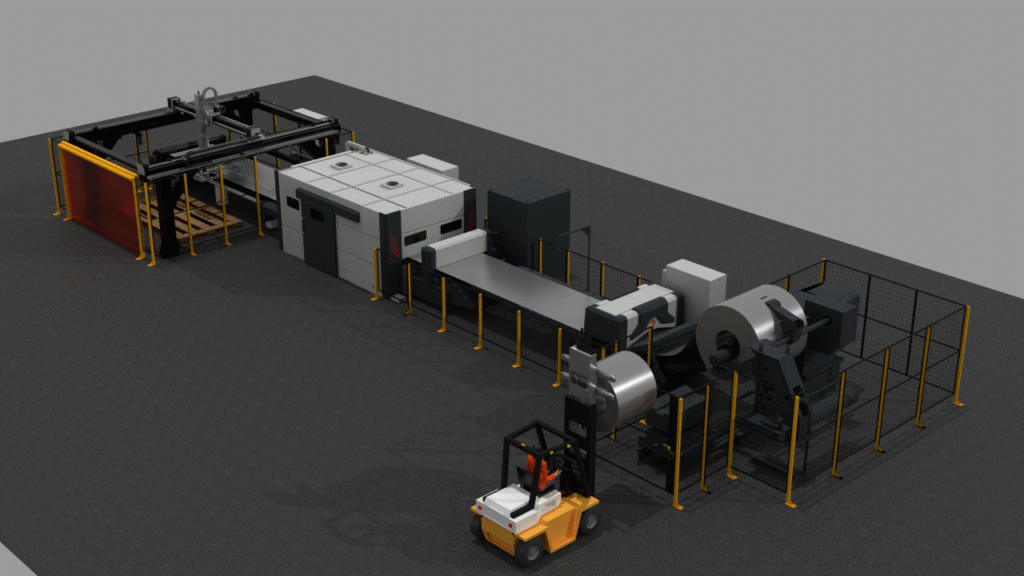

Coil – Fed Laser Cutting

coil fed cutting line head

Features

  • Less Scrap with Continuous Cutting And Nesting Capabilities
  • Reduced Floor Space Requirements for Raw Materials
  • Lower Electricity and Labor Costs
  • Fast and Uninterrupted Production
  • Low Cost Maintenance
  • Elimination of Die Costs, Changeovers Maintenance and Storage
  • Maximum Flexibility In The Cutting Of Materials including High Strength Steel, SS, Al, Cu, etc.
  • Clean Edge, Precise, Repeatable Cutting Process
  • Custom Made Cutting Beds

Options

  • Routing platform
  • Bending arm
  • Automatic coil centering system
  • Fume and dust collector system
  • Easy access straightener roller group
  • Servo-driven automatic straightening
  • Robotic unloading
  • Laser marking unit

Options

  • Routing platform
  • Bending arm
  • Automatic coil centring system
  • Fume and dust collector system
  • Easy access straightener roller group
  • Servo-driven automatic straightening
  • Robotic unloading
  • Laser marking unit

AVAILABLE MODELS

LR SERIES

GP SERIES

MR SERIES

HR SERIES

Laser Cutting Table

1550mm x 2000mm

1550mm x 2000mm

1550mm x 2000mm

1550mm x 2000mm

Decoiler Capacity

5t / Optional up to 10t

12t / Optional up to 25t

15t / Optional up to 30t

15t / Optional up to 30t

Setting Width

400mm – 1550mm

400mm – 1550mm

400mm – 1550mm

400mm – 1550mm

Material Thickness

0.3mm – 1.2mm

0.4mm – 2mm

0.5mm – 4mm

1mm – 6mm

LASER POWER

1kW – 10 kW

1500W, 2000W, 3000W, 4000W, 6000W

2kW – 10 kW

2000W, 3000W, 4000W, 5000W, 6000W

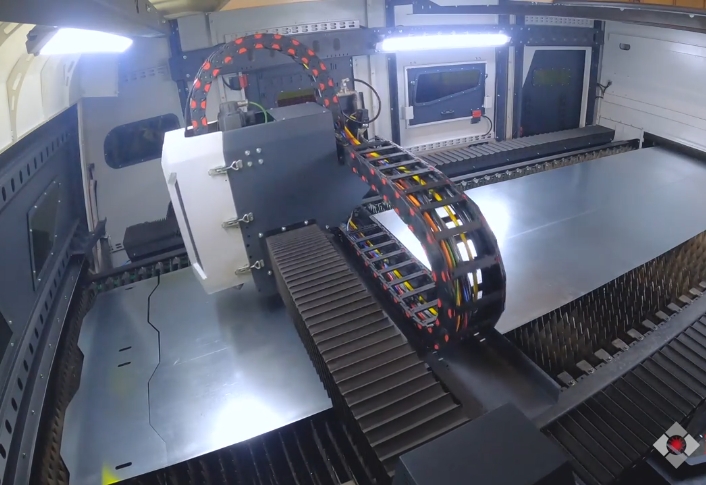

LASER CUTTING

CNC Model Type

Fanuc / Siemens

Cutting Head

Precitec, Lightcutter / Procutter

Laser Source

Disk Laser or Fiber Laser

Laser Safety

EU Safety Standarts Enclosure

Sheet Detection

Laser Sensor / Camera

Accuracy Measurement

Encoder integrated guide rail

Laser Cutting Table

1550mm x 2000mm (Standard) / Custom bed size options are available

Loading Car

Lifting Weight Capacity

12.000kg (Options up to Max. 30.000kg)

Coil Outer Diameter

1300mm (Optional; Max. 2200mm)

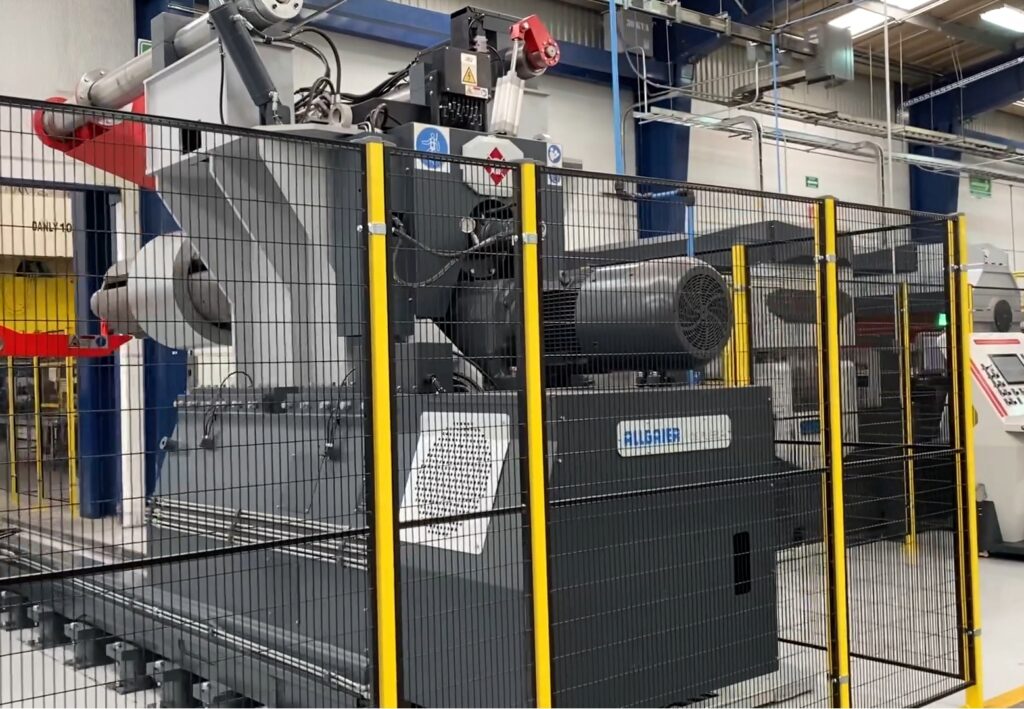

Decoiler

Decoiler Capacity (min. – max.)

1000 kg – 30000 kg

Strip Width Capacity (min. – max.)

20mm – 2000mm

Speed Control System

Adjustable Drum Rotary Speed

Uncoil Protector

Push-Down Arm

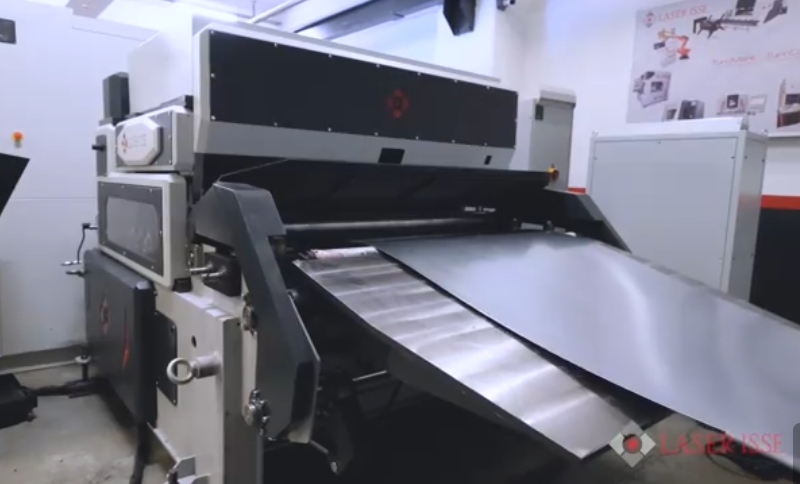

Servo Feeder with Straightener

Control

Siemens or Bosh Rextroth

Setting Width (min. – max.)

20mm – 2000mm

Thickness Range (min. – max.)

0.3 – 2mm (Optional: Max. 10mm)

Thickness Adjustment

Screw Mechanism (Optional; Servo-Driven)

Width Adjustment

Screw Mechanism (Optional; Servo-Driven)

Scrap Recoiler

Strip Width Capacity (max.)

2000mm

Speed Control System

Adjustable Speed

Laser Cutting

Laser Cutting

laser cutting prop
laser routing platform
robotic unloading
gantry unloading system
bending arm

Routing
Platform

Robotic
Unloading

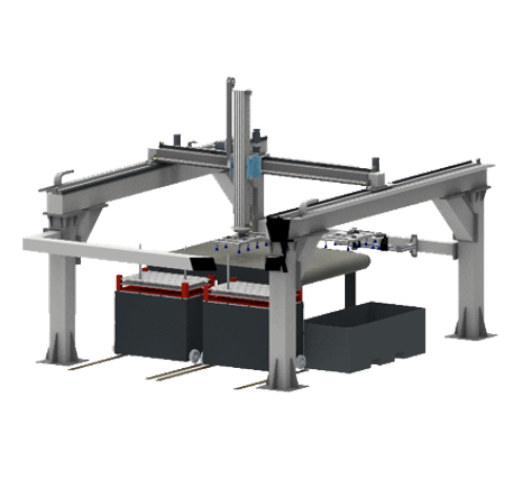

Gantry System
Unloading

Bending
Arm

laser cutting prop
laser routing platform

Routing
Platform

robotic unloading

Robotic
Unloading

gantry unloading system

Gantry System
Unloading

bending arm

Bending
Arm

ADVANTAGES

NO DIE, DIE CHANGEOVER OR MAINTENANCE COST

ROBOTIC UNLOADING & STACKING

IT’S A NON-CONTACT PROCESS

LOWER COST PER PART

RETURN ON INVESMENT

LOWER ENERGY CONSUMPTION

HIGH QUALITY & PRECISION

LOW OPERATION COST

REDUCED STORAGE AREA

REDUCED SCRAP RATE

Application Videos

Sectors

  • Automotive
  • Metal Goods
  • Lift Industry
  • Kitchenware
  • Cookware
  • Industrial Kitchen
  • Home Appliances
  • Shelving & Display
  • Metal Furniture
  • Cabin Equipment Industry
  • Cutting Tools
  • Labeling

Sectors

  • Automotive
  • Metal Goods
  • Lift Industry
  • Kitchenware
  • Cookware
  • Industrial Kitchen
  • Home Appliances
  • Shelving & Display
  • Metal Furniture
  • Cabin Equipment Industry
  • Cutting Tools
  • Labeling
