2D HIGH SPEED LASER CUTTING SYSTEM

HIGH SPEED 2D LASER CUTTING SOLUTIONS

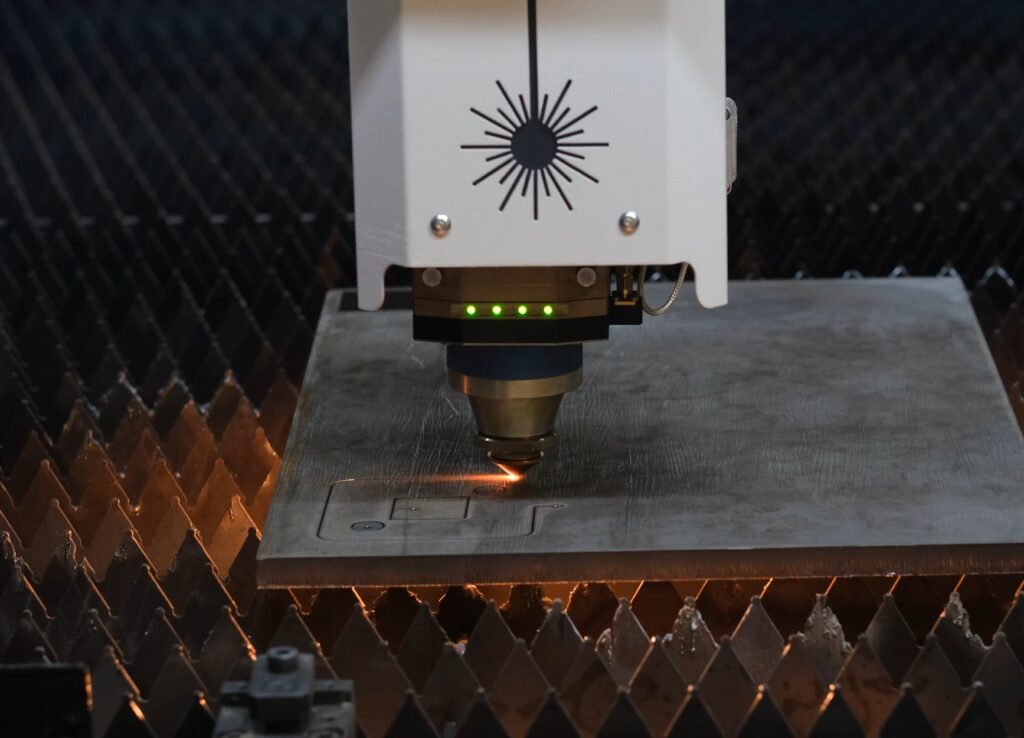

2d laser cutting system high speed head

Options

  • Motorized lift up/down shuttle table
  • Atomatic Nozzle Exchanger
  • Automatic Nozzle Cleaner
  • Nozzle Beam Centering

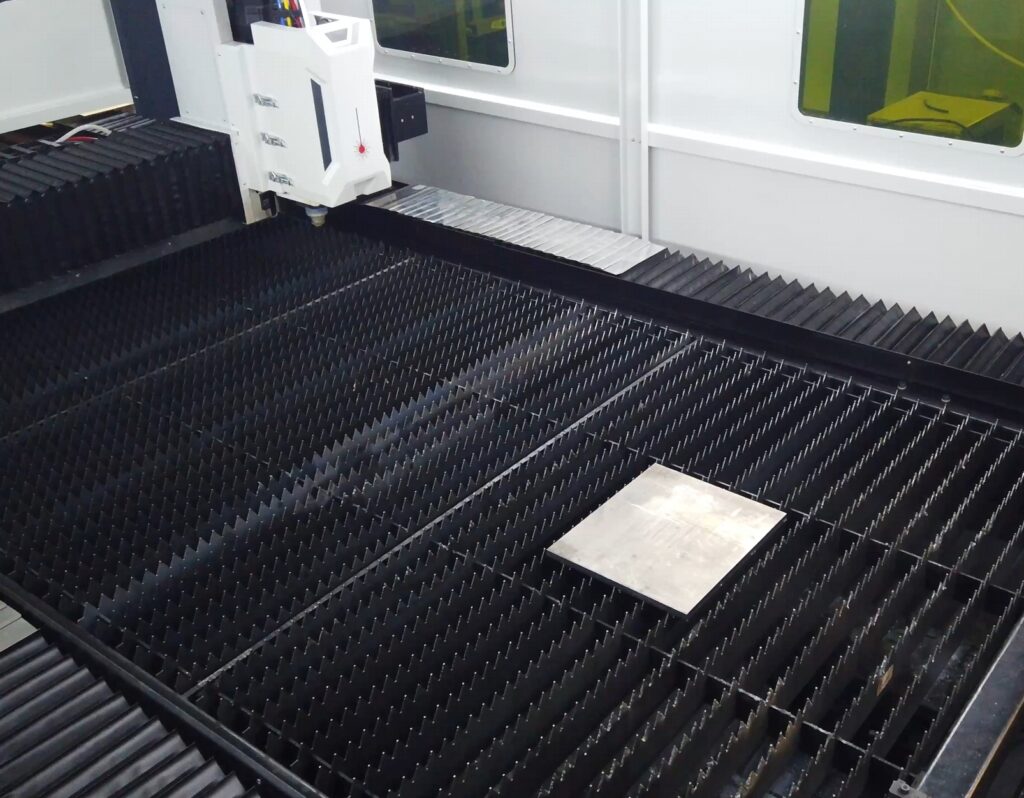

  • Slatted Conveyor
  • Fume Extractor

Features

  • Faster piercing feature
  • Real time simulations
  • Remote access and pre-alert for maintenance and health of machine reduces machine downtime
  • Internal Monitoring Cameras
  • Sheet clamping mechanism to secure sheets during cutting process
  • Sheet Edge Auto-Detection
  • Multi-Language HMI Option
  • Anti-collision sensor
  • Six zone fume extractor
  • Nesting softwares from Metalix and Sigmanest (Lantek)
  • Auto-Calibration
  • Drop Hole Error
  • 15 Seconds Dual Pallet Changeover

High Speed Laser Cutting

2d laser cutting system high speed back side

Technical Information

3015

4020

6020

8020

Working Area

3000×1500

4000×2000

6000×2000

8000×2000

Laser Power

1-20kW

Positioning Accuracy

≤±0.05mm/m

Repeatability

≤±0.02mm

Max Jog Speed

210m./min.

Max Acceleration

2 G

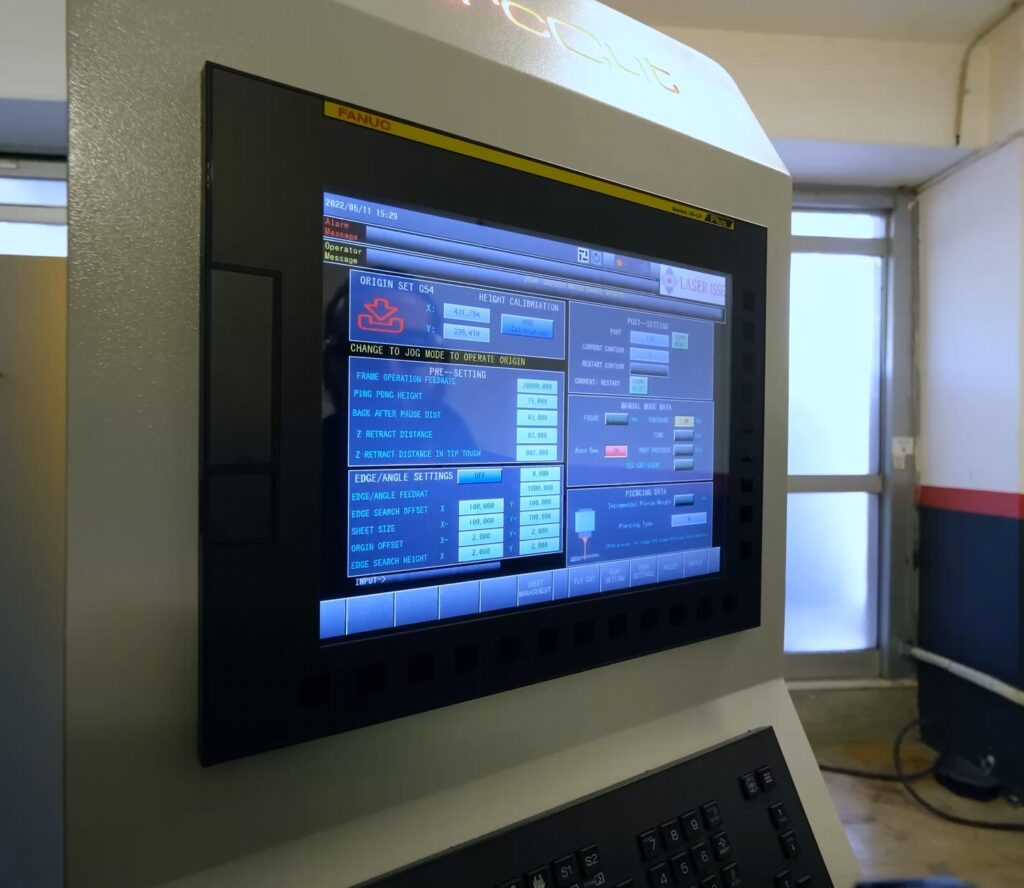

CNC

FANUC/SIEMENS

Sectors

  • Automotive
  • Metal Goods
  • Lift Industry
  • Kitchenware
  • Cookware
  • Industrial Kitchen
  • Home Appliances
  • Shelving & Display
  • Furniture
  • Cabin Equipment Industry
  • Cutting Tools
  • Labeling
18+ Years Laser Experience • 18.000+ SqM Work Area • 4 Facilities • 150+ Employees 150+ Different Laser Applications • 1600+ Laser System Installation • Exported to 55 Countries

With the trust of our customer’s, we are able to make a better tomorrow, utilising state-of-the-art laser technology to reach perfect production.
