HOW DOES LASER MARKING WORK?
WHAT WE DO
ADVANTAGES
AVAILABLE FEATURES
FIBER LASER SYSTEM
Pulsed Fiber Lasers are renowned for their versatility with laser marking being one of the most popular applications.

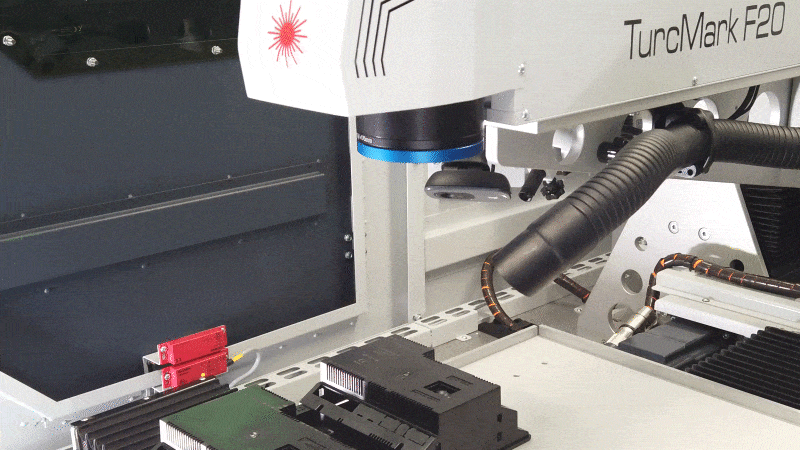

Laser marking is the process where a material (which can be anything from ceramics, plastics, metals, LEDs, rubber, graphic composites, etc.) is marked or labelled with a simple black mark, or in colour, depending upon the material.
UV LASER SYSTEM
Depending upon the material, UV lasers are better absorbed than other wavelengths, requiring less power to produce a clear mark.
This makes the process even simpler since UV laser marking ensures a high-quality, high-contrast mark in one application.
CO2 LASER SYSTEM
CO2 lasers are mainly used for processing non-metal materials such as wood, textile, plastics, ceramics, glass, stone etc.
SYSTEM DESIGNS
CLASS 4 DESKTOP
CLASS 1 DESKTOP CABINET

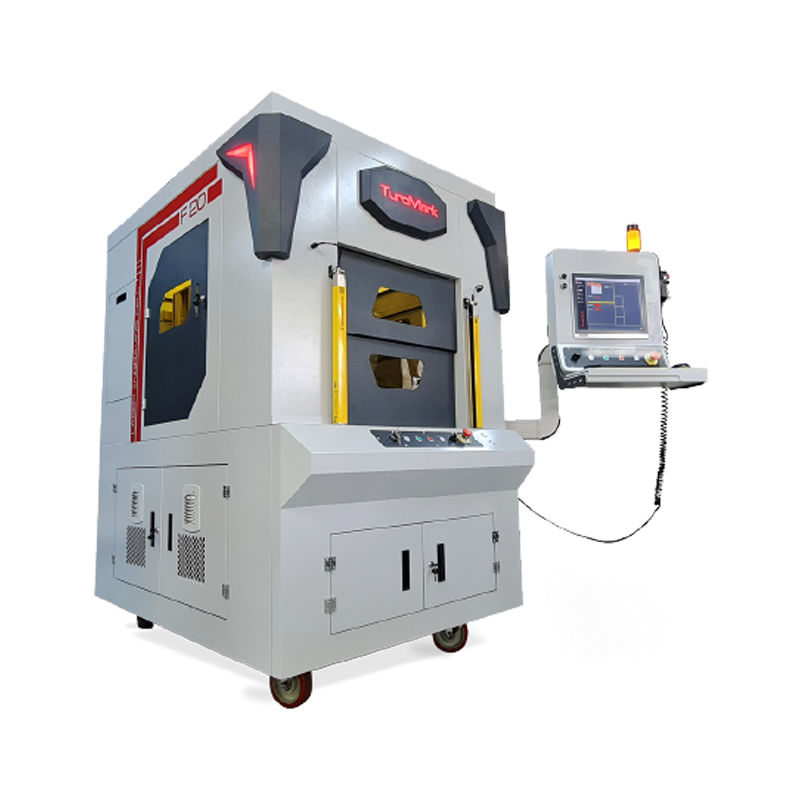

CLASS 1 FREESTANDING

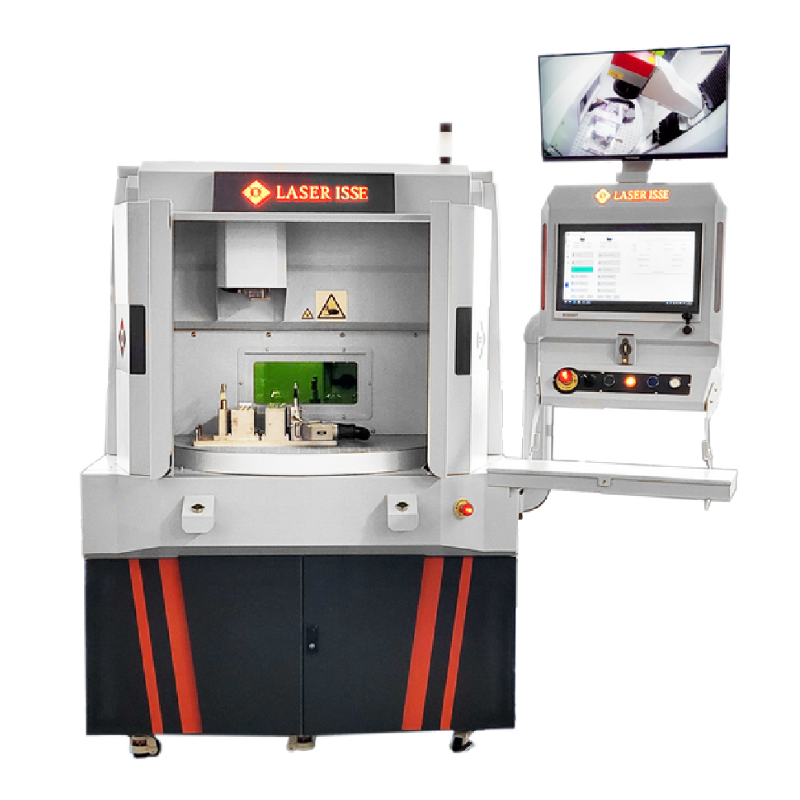

CLASS 1 FREESTANDING + TT
5 AXIS MOBILE SYSTEM
7 AXIS MOBILE SYSTEM
CLASS 1 TWIN STATION
ROBOTIC APPLICATION
CLASS 1 FREESTANDING + TT
OPTIONAL EQUIPMENT
Rotary Axis
Rotary stage is incorporated into the system to mark on cylindrical items like rings, bracelets and bearing. Our software ensures precise circular movement.
- High accuracy & outer diameters
- Maximum Ioad depends on application
- Pneumatic gripper for easy load/unload
Extraction Unit
A variety of toxic fumes and particles are generated when different materials are being lasered. Fume, dust and particles need to be removed to protect the operator and ensure the quality of application.
- Synchronized operation with the laser
- Additional HEPA Filter can be fitted to the fume extractor
- Lockable cabinet design
- Recycling of particles generated during the cutting and engraving processes on precious metals by collecting them in the tank
Clamping Device
The clamping device minimizes movement of the part due to heat expansion which occurs during the marking and cutting process.
- Adjustable width
- Pneumatic clamps, 6 bar pressure
- Easy access to work area
- Encloses by laser safety glass providing protection against 1064 nm beam
- Drawer allows easy recovery of cut outs
Auto Feeder
You can engrave and cut objects from a metal sheet continously without repositioning the parts in every cycle.
- Pneumatic valves and motorized movement
- Faster process without stand by operator
- Non-stop process capability
- Drawer makes easy recovery of cut outs possible
XY Translation Stages
XY stage offers a much larger marking area (up to 500mm x 500mm). The travel requirements of the XY stages can be produced to any size and precision according to the requirements of the customer’s application.
Autofocus
Autofocus regulates the distance to the part which to be processed. The system can adjust the focus distance automatically with laser displacement sensor.
SOFTWARE CAPABILITIES
-
Simple , user friendly interface
-
Import vector files such as .dwg, .dxf, .psd, .plt, .cnc, etc.
-
Direct marking of pictures with extensions such as .jpeg, .bmp, .tiff, etc.
-
Import and process CAM (G-Code) data
-
Remote Control via RS-232 or TCP/IP
-
User Level selection
-
All common formats, 2D -1D Barkcodes
-
Multi-language options
OUR PARTNERS
FIBER DISC LASER
CO2 LASER
SCANING HEAD
LASER SAFETY EQUIPMENTS & CERTIFICATION
PLC & CONTROLLER
SYSTEM PARTNER
PLC & CONTROLLER
PNEUMATIC & CHILLER
PNEUMATIC & CHILLER
INDUSTRIES
Kitchenware & Professional Kitchens
Watch & Jewelry Industry
Aerospace
Solar
Defence
Home Appliances
Automotive
Promotion & Gift Industry
Semiconductor
Construction
LED Market
Medical Equipments
Electronic
Drug & Medicine
Glass
Packaging
Tool and Mold Making
Plastic Processing
JEWELRY
Laser ISSE has been doing laser manufacturing business for 17 years who has involved to focus also jewelry market since 2010 becoming global pioneering company.
Laser ISSE designed all in one systems which can make Laser Marking, Laser Cutting and Laser Engraving.
Our software is able to make very fine laser marking, picture laser marking from jpeg files directly, 2D and 3D laser engravings in same software and very fast laser cutting without loss.
We offer faster cutting ability than others which makes easy cut piece to the tray.
- Fastest, most precise and jewelery laser cutting
- Deep 2D and 3D laser engraving on on gold and silver
- No precious metal loss
- Versatile laser marking
- Photo and artwork
- Maintance Free
