HOW DOES LASER WELDING WORKS?

Laser welding works by using a focused beam of light to weld metals together. The beam provides a concentrated heat source, allowing for narrow, deep welds and high welding rates.
When the beam interacts with the surface of the material, laser beam melts the materials to be joined along the joint. The melts flow into each other, and the solidified melt connects the materials permanently. This feature makes the laser welding ideal for applications where accuracy, cleanliness and permanence are critical to success. With many different types of laser solutions available, laser welding can be performed in many different industries.

ADVANTAGES

LOWER ENERGY CONSUMPTION

NO CONSUMABLES

EASY INTEGRATION WITH PRODUCTION LINE

WELDING DISSIMILAR METALS TOGETHER

MINIMAL CLEANING PROCESS AFTER WELDING

DIRECT WELDING OF MATERIALS WITHOUT A FEED WIRE

FASTER APPLICATION HIGHER RESISTANCE

MINIMAL THERMAL EFFECT

REDUCTION IN OPERATOR ERROR

TYPES OF WELDING

BUTT WELDING

OVERLAP WELDING

TEE JOINT WELDING

SPOT WELDING

LAP JOINT WELDING

CORNER JOINT WELDING

COMPARISON CHART

WHAT WE DO?

  •  We have manufactured and sold 150+ laser welding systems worldwide
  •  15+ years of laser welding experience
  •  We have produced laser welding systems which are generated by Fiber, Disk and Nd:YAG Lasers
  •  We have installed systems for global brands
  •  We provide complete project-based automation solutions

AVAILABLE FEATURES

Robotic Integration

Class 1 Cell

Handheld Torch

Laser Marking Unit

Custom Size Welding Bed

Monitoring Camera

Integration Existing Production Line

I/O Connection (Ethernet)

LASER TYPES

FIBER LASER

Fiber Lasers are used in welding applications effectively by virtue of advanced technology.

SPI Fiber Lasers has variMODE, a switchable beam delivery feature which allows users to tailor and optimize the beam characteristics (including spot size and beam profile), specific to their needs.

With the higher power (1 kW – 12 kW) and CW (continuous wave) laser beams, it allows for a fast process time.

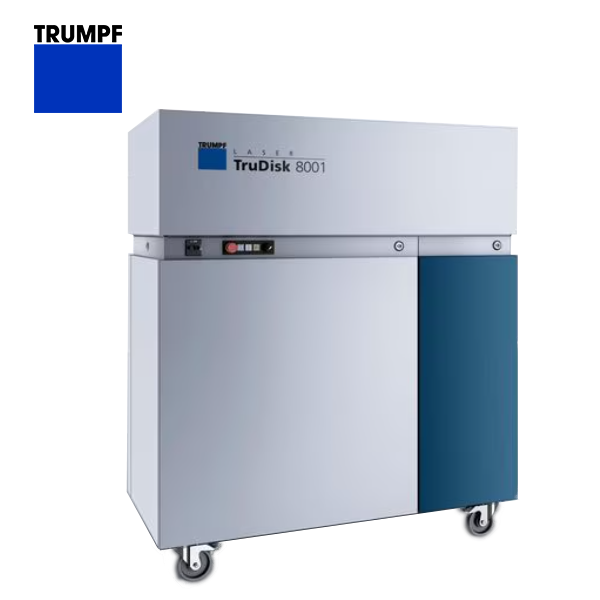

DISK LASER

Trumpf Disk laser has very stable laser beam quality which has similar wavelength with Fiber laser.

With the Disk Laser technology, this allows for higher power (2 – 12 kW), with fast and non-problematic application opportunities when thick materials, and those with highly reflective surfaces, are needed to be processed.

Nd:YAG LASER

Lamp pumped laser welding systems produced by Laser ISSE are effective in spot welding and seam welding applications due to the high peak powers that can be achieved.

Thanks to multiple output feature, it can be used in multiple systems with time sharing or power sharing. Addition to that Nd:YAG lasers can be used with Laserisse Handheld devices for manuel usage.

INTEGRATION

4 AXIS CNC

With integration of laser beam obtained from either Lamp Pumped (Nd:YAG ) or CW ( Fiber- Disk) Laser systems, and combined with CNC integration, it is capable of controlling 4 axis translation stages using fiber optic delivery cable.

  • Custom design welding bed
  • Servo CNC controlling system
  • Teach mode option
  • High accuracy motion
  • Combines with;

6 AXIS CNC

With integration of laser beam obtained from either Lamp Pumped (Nd:YAG) or CW (Fiber- Disk) Laser systems, these Robots are capable of 6 axis movement via fiber optic cable.

  • Multi axis positioners able to combine with robot to make full automation of laser welding operation.
  • Robotic laser welding system is covered by welding cell which is provided laser safety protochol by IEC60825
  • Able to use seam tracking sensor for laser welding path and laser welding penetration sensor for checking deepth of welding.

HANDHELD TORCH

Available With: Nd:YAG LASER

Manual application of the laser beam obtained from Lamp Pumped (Nd:YAG) 300w and 600w systems without any automation and fixturing.

  • Practical
  • Accessible
  • Light weight
  • Ergonomical
  • Safe

HANDHELD TORCH FEATURES

  • Laser operates only when the operator uses the glasses, and the graphite touches the working material
  • Graphite tips are designable specifically for the welding piece and easy to apply
  • Provides economic solutions as fixturing is not required
  • With its ergonomic design, it facilitates welding application in sections difficult to reach
  • Time assist gas control allows for a cleaner surface to be obtained
  • Multiple fiber path, can achieve energy sharing and time sharing
  • Energy negative feedback laser control technology to achieve consistent welding effect
  • Arbitrary waveform control technology to precisely control welding points formed by each pulse energy.

CLASS 1 SAFETY CELL DESIGNS

PIPE WELDING SYSTEM

CUSTOMIZED CELL

STANDARD CELL

TAILORED BLANK LASER WELDING SYSTEM

TWIN STATION CHIMNEY WELDING CELL

DEPOSITE WELDING

  • VISION Welding Systems are popularly used for filler welds and mold repairs as they have the best selection of wire fed systems
  • Obtained either from Lamp Pumped (Nd:YAG) or Fiber Laser.

OUR PARTNERS

FIBER LASER

DISK LASER

SCANNING HEAD

LASER SAFETY EQUIPMENTS & CERTIFICATION

PLC & CONTROLLER

SYSTEM PARTNER

INDUSTRIES

Kitchenware & Professional Kitchens

Watch & Jewelry

Aerospace

Solar

Defence

Home Appliances

Automotive

Promotion & Gift

Semiconductor

Construction

LED Market

Medical Equipment

Electronic

Drug and Medicines

Glass

Packaging

Tool and Mold Making

Plastic Processing

WELDING SAMPLES

AUTOMOTIVE

SEAM WELDING

DISSIMALAR WELDING

TUBE WELDING

KITCHENWARE

MACHINE PART WELDING

WOBBLE WELDING

SENSOR WELDING
